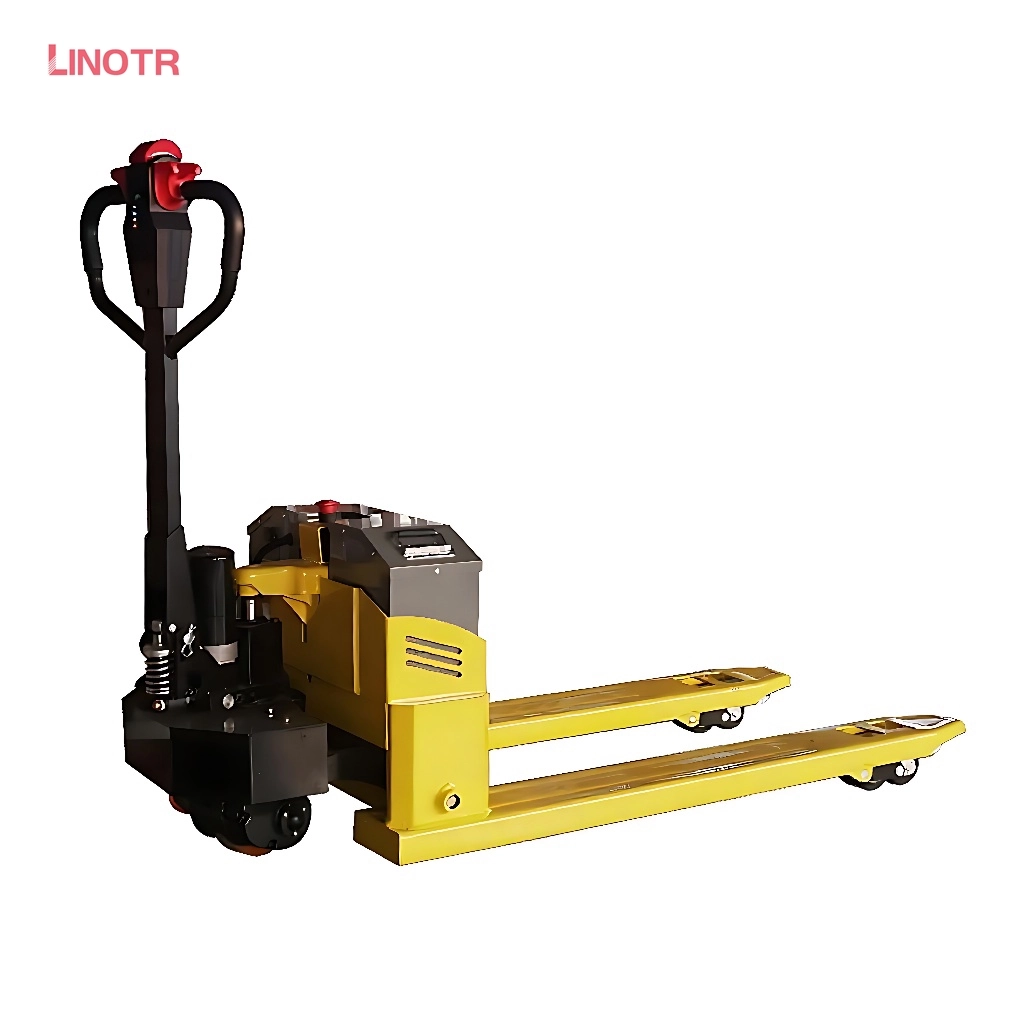

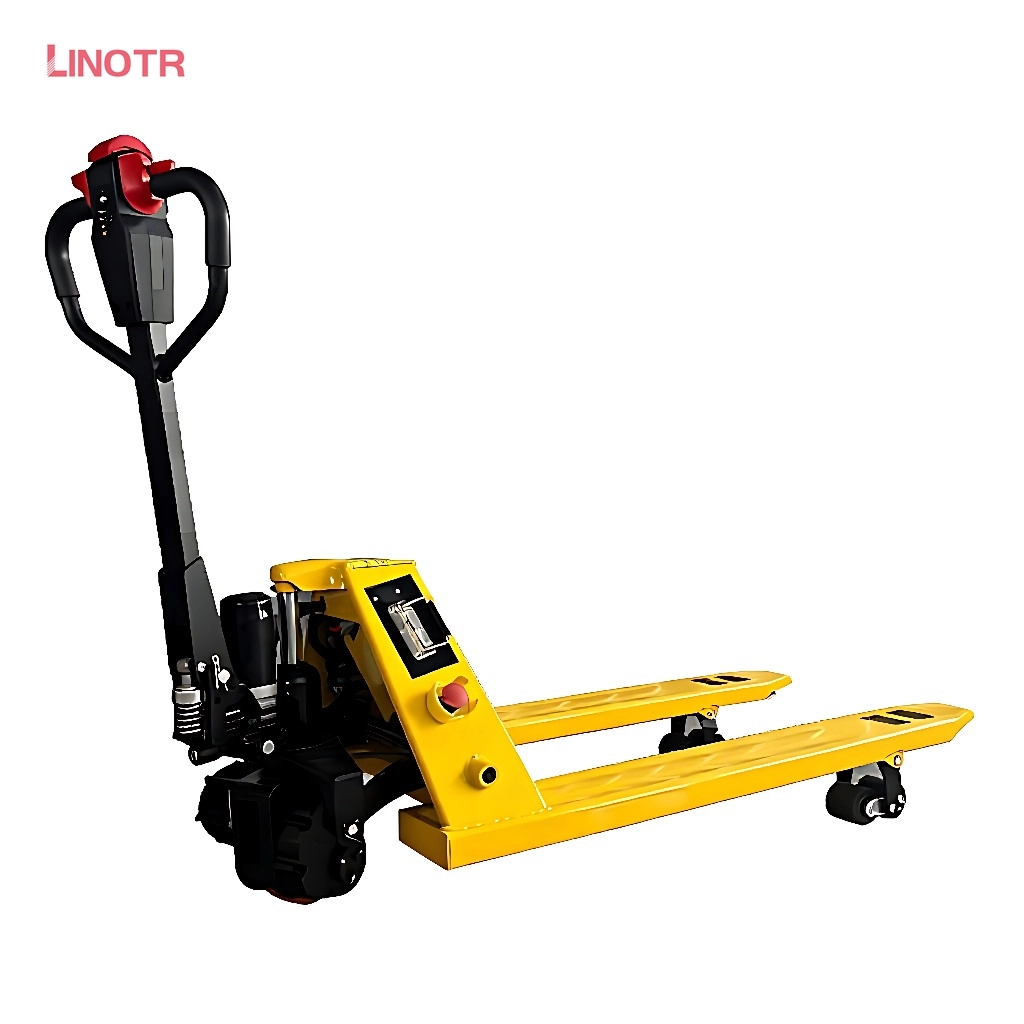

View productThe CBD-15 1.5T Electric Pallet Truck is a walk-along, battery-powered model for flat-floor pallet transfer, and it forms part of the wider warehouse material handling equipment range; it also gives teams a practical option within warehouse handling equipment when loads must move between receiving, storage and trailer doors.
The CBD-15 is a 1.5-tonne electric pallet truck with motorized lifting and motorized walking. Both functions are powered: the forks rise under power, and the truck drives itself, so operators do not pump by hand.

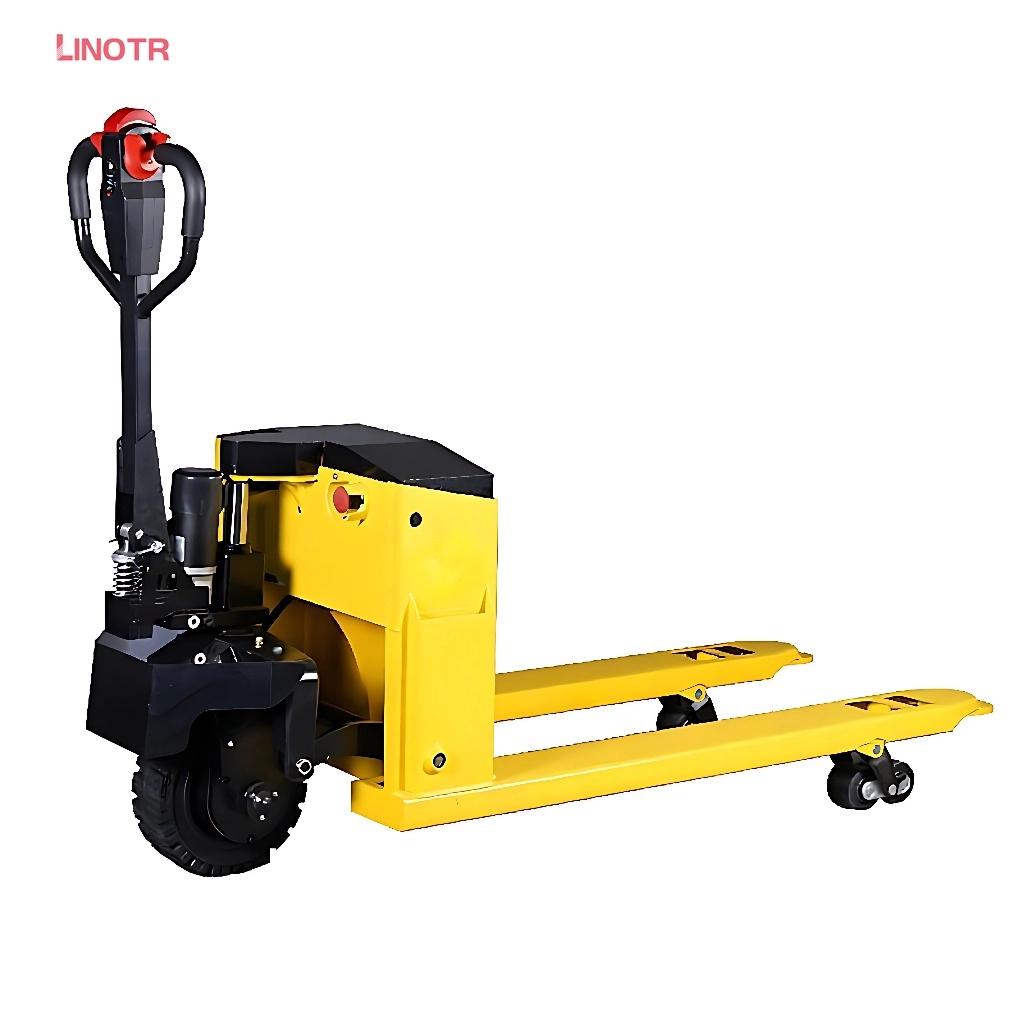

A loop-shaped tiller handle steers the truck while the operator walks beside the load. Travel controls and a battery-level readout sit together on the control housing at the head of the tiller. The low-profile fork tines slide under a pallet standing flat on the floor, and a single large rear drive wheel under the battery housing is described as keeping steering light and the turning circle tight in busy aisles.
The lead-acid battery sits in a covered compartment behind the control housing. A red emergency stop button on the tiller cuts drive immediately. This is a low-lift truck: it cannot stack pallets onto racking, and stacking requires a stand-on electric stacker or counterbalance forklift.
The table below repeats the model data shown on the product page. Values are fixed for this model; confirm the width option and site details before ordering.
| Model | CBD-15 |
|---|---|
| Fork length | 1160 mm |
| Total width | 550 / 685 mm |
| Overall length | 1600 mm |
| Total height | 1240 mm |
| Operating method | Motorized Lifting / Motorized Walking |
| Output voltage | Charge 220V / Output 48V |
| Battery type | Lead-acid battery |
| Lifting height | 85 mm – 200 mm |
| Rated load | 1500 KG |
The CBD-15 is offered with two total widths, 550 mm and 685 mm. The right choice depends on pallet size and the narrowest aisle or door the truck must pass. Fork length is 1160 mm, overall length is 1600 mm, and total height is 1240 mm; check these figures against the work area before selection.
The charger must match the mains supply at the site, so confirm the available power before ordering. Battery provision is matched to the shift: load, travel distance and battery condition all affect running time, and no single runtime figure is quoted. A spare battery pack is mentioned as an option for longer shifts.
The selection prompt asks buyers to share load, terrain and duty cycle so the correct model can be chosen from the range covering roughly 1.5T to 5T.

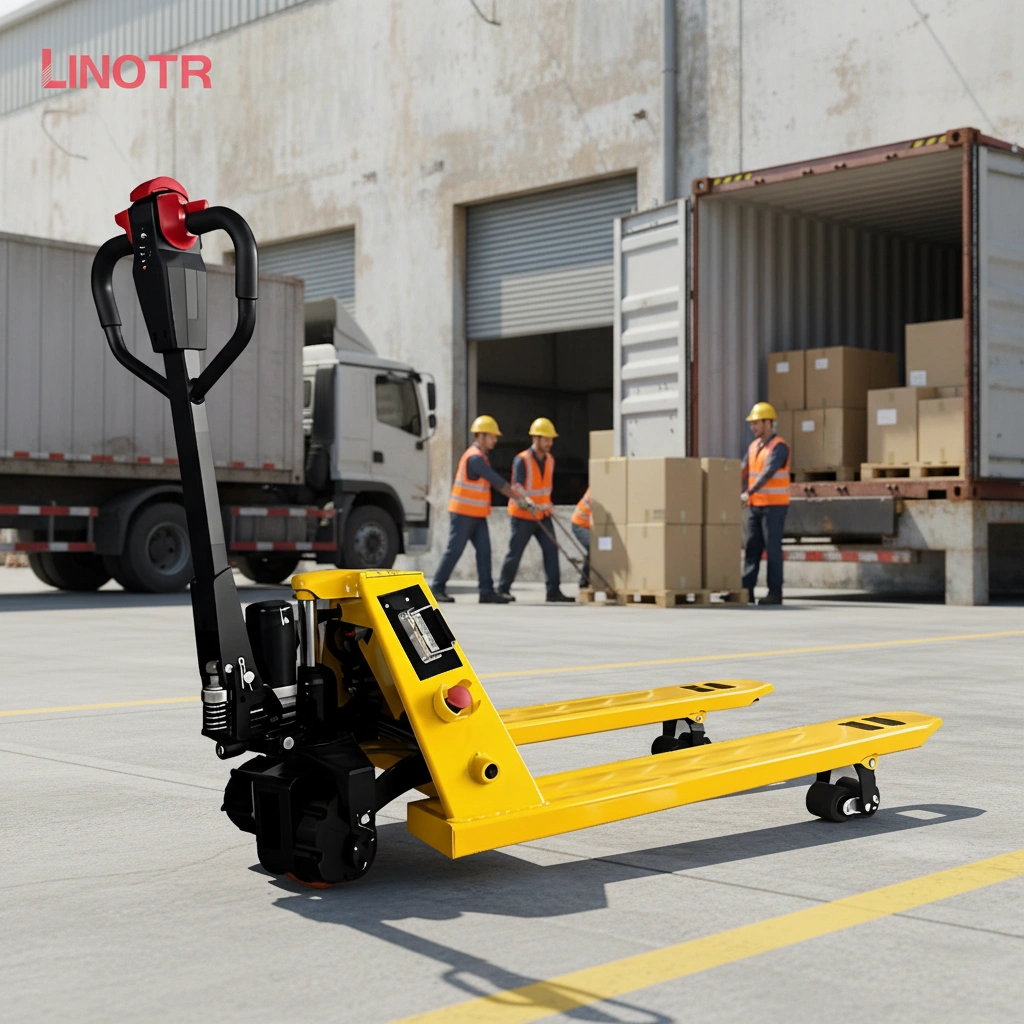

Use the CBD-15 for goods-in and receiving, dock-to-storage transfer, trailer and container unloading, production line supply, and cross-dock or staging work. It is intended for firm, level floors such as warehouse aisles, loading bays and paved dock aprons.
With a rated load of 1500 kg, it suits pallet movement within those flat-floor areas. It is a low-lift truck: lifting height runs from 85 mm to 200 mm, and the page states clearly that it cannot stack pallets onto racking. For stacking, the range includes stand-on electric stackers and counterbalance forklifts. Ramps and unpaved yards are outside its intended use.
Use these checks to confirm the CBD-15 matches the work before placing an order.
Keep adjacent product options together for a faster catalog comparison.
3-ton capacity CPD-30 Electric Forklift offers reliable indoor material handling. A top choice for mini excavator suppliers seeking robust compact excavator and electric mini excavator integration.
View product
A 2-tonne stand-on electric stacker built for warehouses and plants that move dense pallet loads through the working day.
View productNo. the product page states that it is a low-lift truck and cannot stack pallets onto racking; stacking requires a stand-on electric stacker or counterbalance forklift.
The cbd-15 is a powered alternative for flat-floor pallet transfer: the forks rise under power and the truck drives itself, so nothing has to be pumped by hand. the manual-versus-powered choice should still be checked against load, route and shift requirements.
Use it on firm, level floors such as warehouse aisles, loading bays and paved dock aprons. the page says ramps and unpaved yards call for a different truck.
A red emergency stop button on the tiller cuts drive immediately.
Two total widths are available, 550 mm and 685 mm. the choice depends on pallet size and the narrowest aisle or door the truck must pass; confirm fork width before ordering.
The page does not quote a single runtime number. running time depends on load, distance and battery condition and is matched to the customer's shift; a spare battery pack is mentioned as an option.
